Hardware parameters

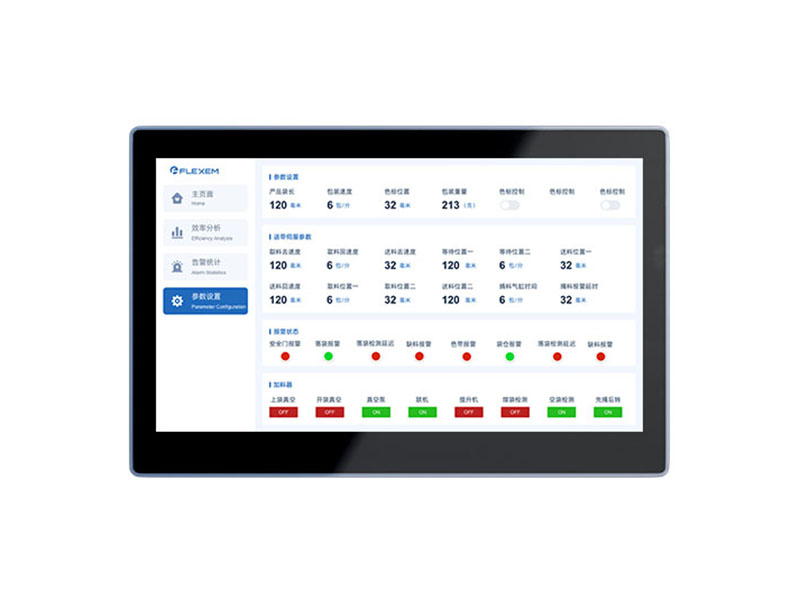

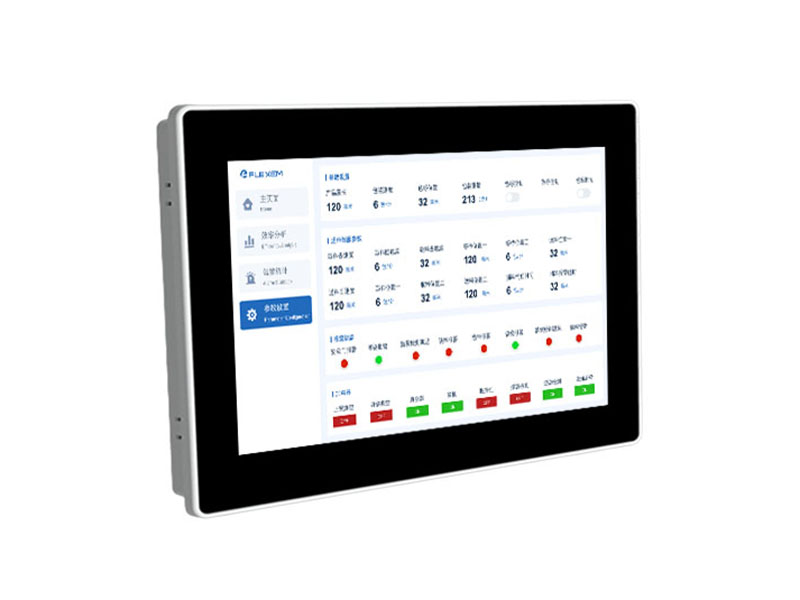

• Display screen	15.6” 16:9 TFT LCD screen
  LCD viewing angle （T/B/L/R）	85'/85'/85'/85'
  Resolution ratio	1920×1080
  Colour	16.7M (24 bit color)
  Brightness	250 cd/m²
  Touch Screen	4-wire industrial resistor touch screen
  USB Port	1 * USB3.0 (TYPE-C, Rear IO)
  Display interface	2*HDMI (upright 90° TYPE-A): up to 3840x2160@30Hz
  Horn	Built-in

Electrical specifications

• Rated power	< 60W
  Rated power supply	DC12V/5A
  Power protection	Adopting isolated power adapter with lightning surge protection
  Allow power loss	< 5mS
  CE&RoHS	Comply with EN61000-6-2:2005 and EN61000-6-4:2007 standards; Comply with RoHS lightning surge ± 1KV, group pulse ± 2KV; Electrostatic contact 4KV, air discharge 8KV

Environmental requirements

• Operation temperature	0~50℃
  Storage temperature	-20~60℃
  Ultraviolet rays	Prohibit working in strong ultraviolet environments (such as direct sunlight)
  Ambient humidity	10~90%RH（No condensation）
  Seismic resistance	10-25Hz (2G/30 minutes in X, Y, Z directions)
  Cooling method	Natural air cooling

Other

• Protection grade	The front panel meets IP65 (installed in conjunction with a flat cabinet), and the rear shell of the body meets IP20
  Mechanism	Non ferrous metal alloy shell
  Dimension	380mm×245mm
  Dimensions	394mm×256mm×53.3mm
  Overall weight	About 2300g
