Product brand: Siwei Junli

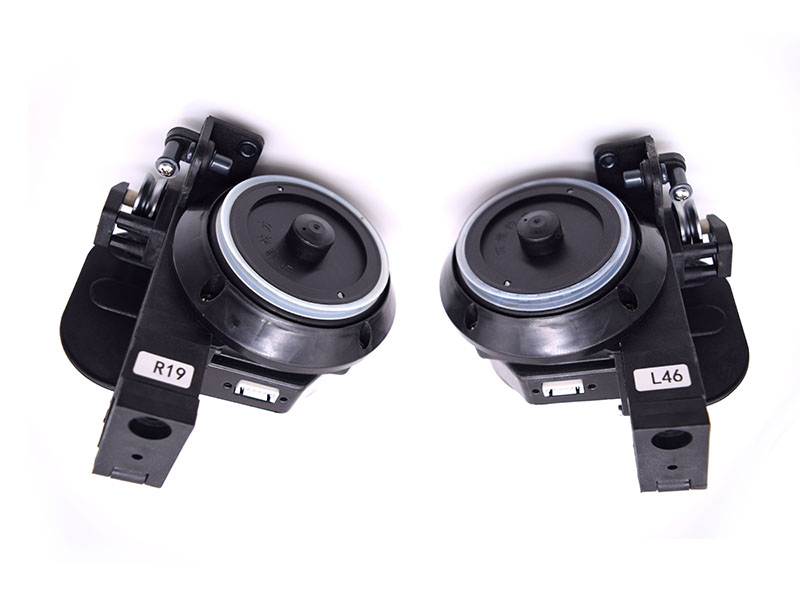

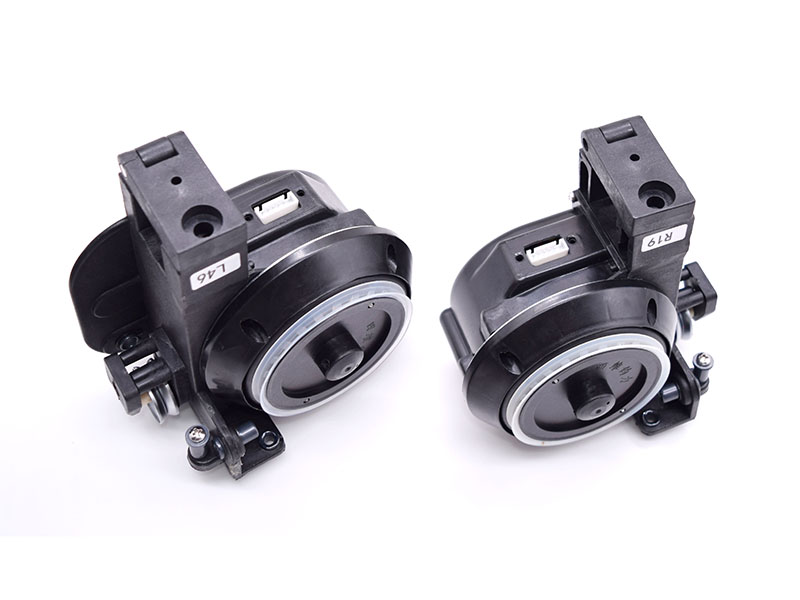

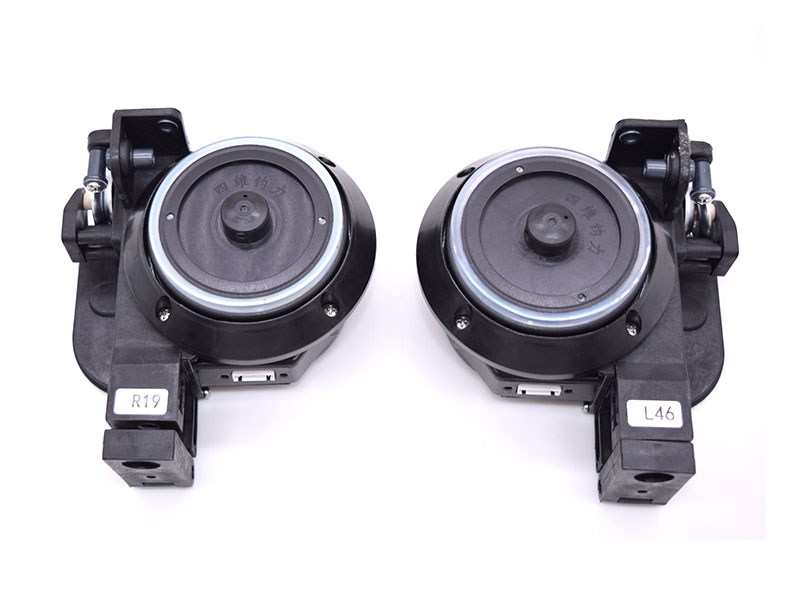

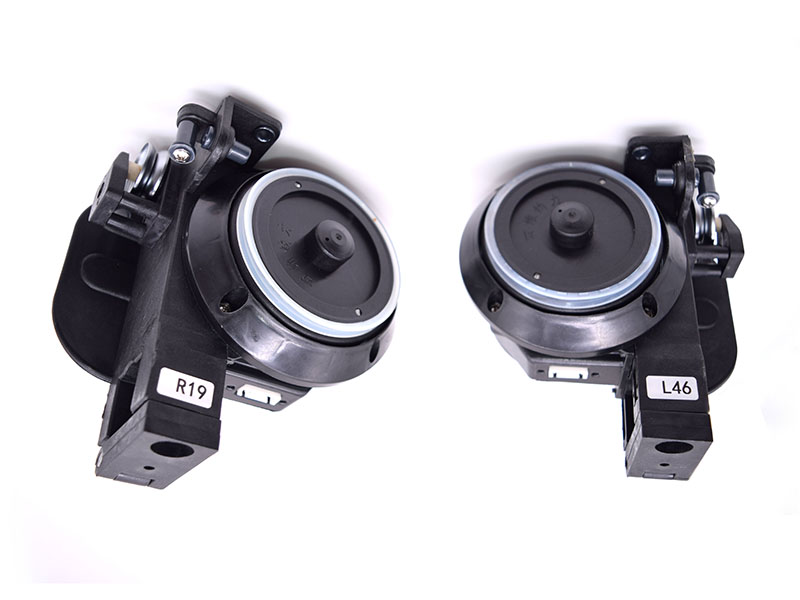

Series: Electromagnetic tensioner

Service hotline: 13775081082

Description of KX-2000 technical parameters:

1. Tension range: 6CN to 60CN, 10 to 100CN,25CN to 250CN and other three specifications.

2. Tension accuracy range (6 ~ 50CN)土2CN; (50 ~ 250CN)土5CN. Speed range: 0-800m/min.

3. Tension device backup function: stable output set tension (and speed is irrelevant), parking and running signal light display, individual power switch. Using vertical disc type spinning yarn, there is no relative motion friction with the yarn.

4. Electrical characteristics: 24VDC power supply, a single tensioner power 5 watts, RS485 communication, Ethernet networking. Configure the touch screen of the operating terminal:

5. The man-machine interface operating system, the tension can be set, the tension display of each ingot, the communication status display of each ingot, the tension control can be set in zones, and the tension value of each tensioner can be fine-tuned.
